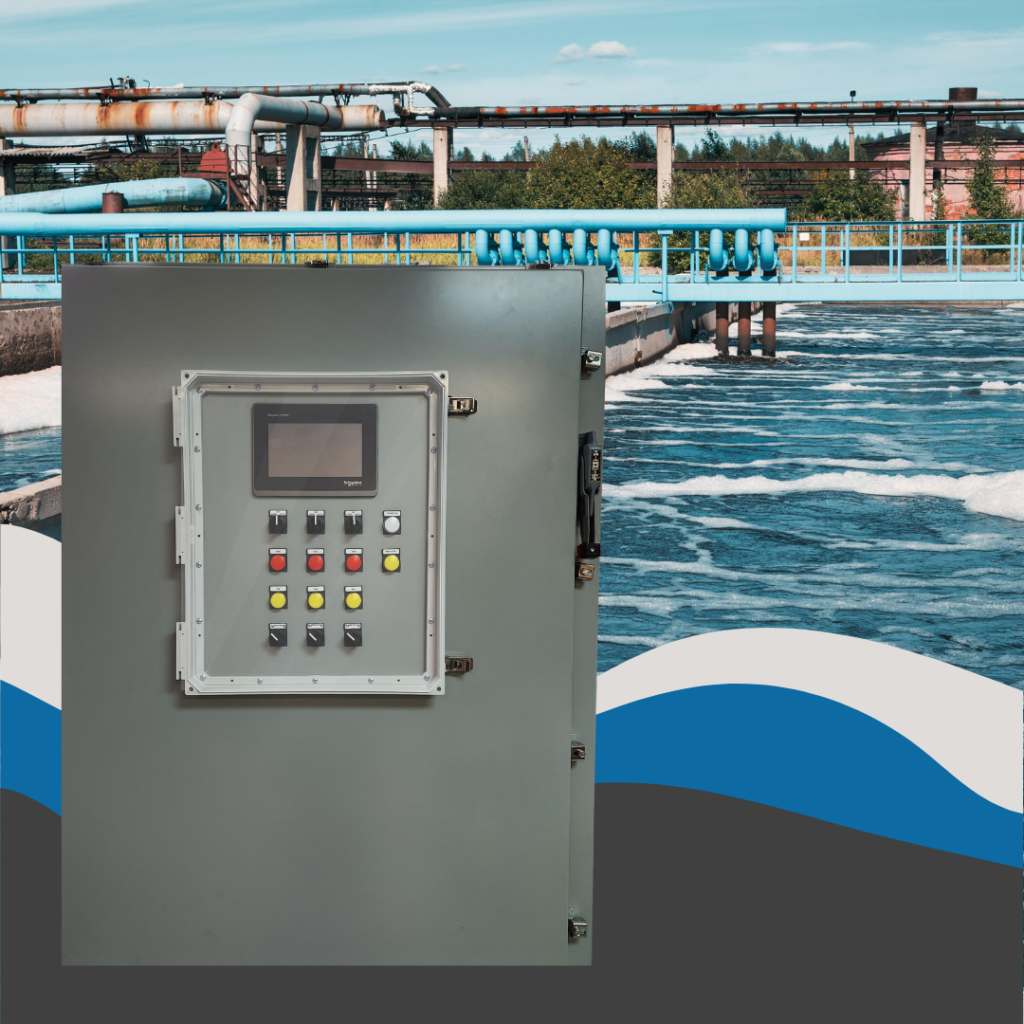

SAS’ Intelligent All-in-One Lift Station Control Panel
Intelligent all-in-one lift station control panel
Effortless Installation. Advanced Control. Immediate Results.
Experience the future of lift station management with Strategic Automation Services’ intelligent, all-in-one control panel designed to simplify installation, enhance reliability, and significantly reduce your project timelines and costs. As a trusted control systems integrator, we not only provide the panel but also expertly program it, ensuring optimal performance from day one.
Key Benefits:

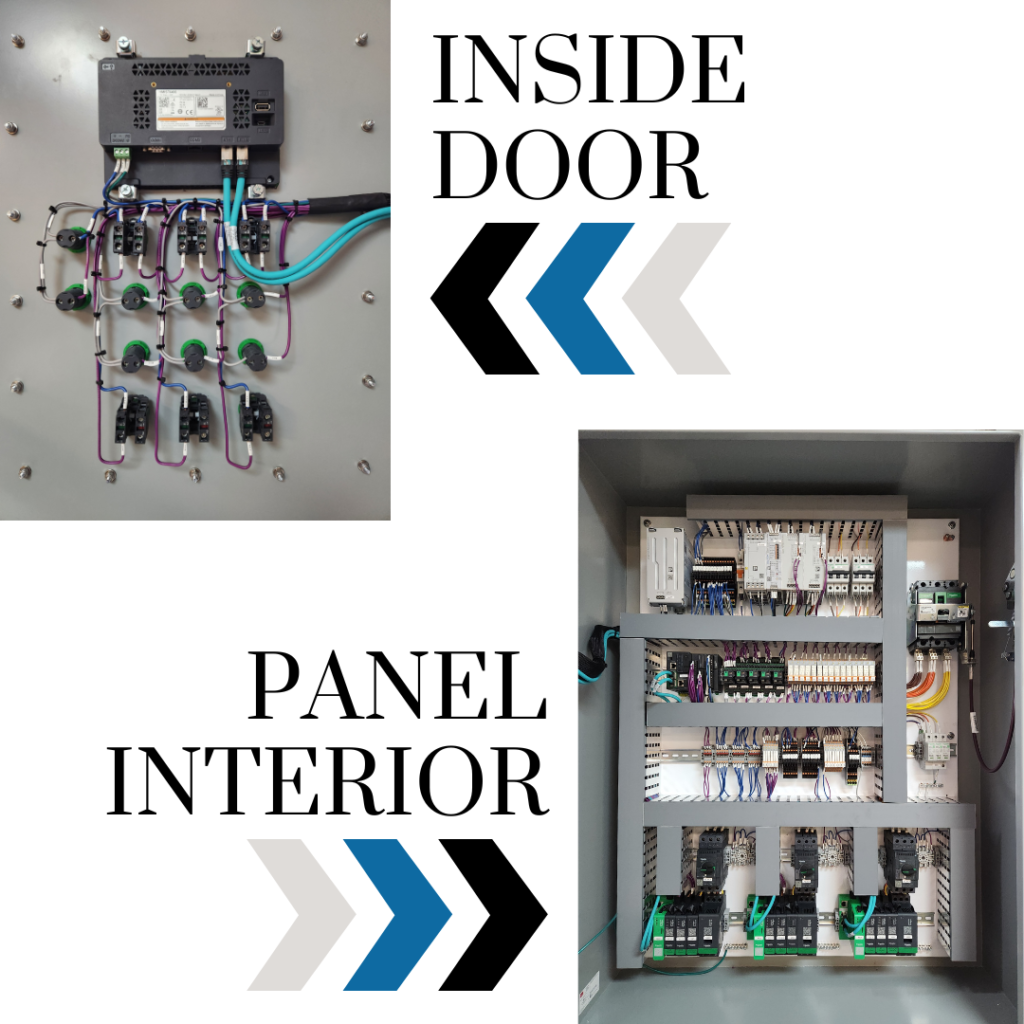

- Ready-to-Install Convenience: Skip the hassle and cost of custom-designed panels. Our compact 48”H x 37”W x 12”D UL Type 4X enclosure arrives fully equipped with all motor controls and integrated SCADA components, ready for immediate setup.

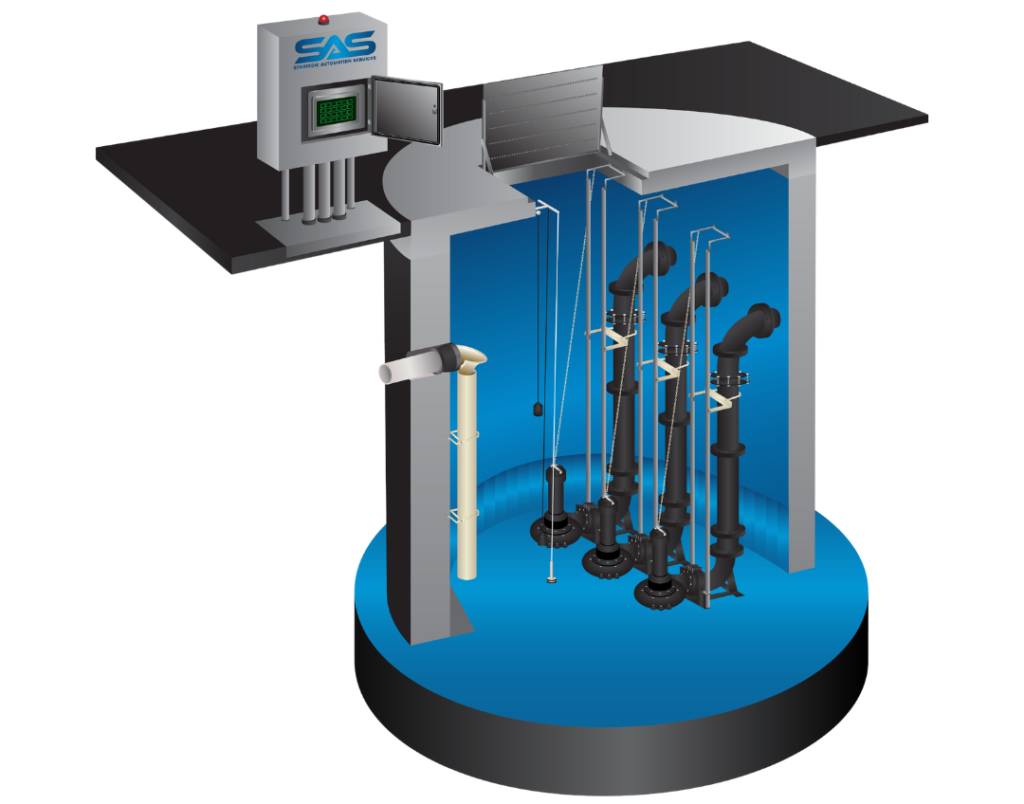

- Flexible and Powerful Operation: Easily control up to three 20HP pumps at 480VAC/3Ø. Primary operation is seamlessly driven by a submersible level transmitter with secondary float-based backup ensuring uninterrupted service.
- Safety and Compliance: Rest assured that our panel meets stringent UL508A and NEC safety standards, delivering peace of mind alongside robust performance.
- Smart Communication & Monitoring: Featuring a user-friendly 7” touchscreen HMI and built-in UPS, our panel provides advanced capabilities including direct alarm notifications via email or SMS through cellular modem connectivity.
- Minimal Field Wiring: Simplified installation means fewer complications—connect only the incoming power, pump leads, floats, and level transducer.
- Advanced Electrical & Power Monitoring: Our control panel offers comprehensive pump and power monitoring to protect your equipment and optimize performance:
- Ground Current, Phase Loss, Unbalance, and Reversal detection
- Overcurrent, Undercurrent, Long Start, and Rapid Cycle protection
- Real-time monitoring of voltage, current, power, and energy parameters
Transform your lift station setup with Strategic Automation Services’ innovative, cost-effective control solution and have your system operational faster than ever.
Contact SAS today to elevate your lift station management:
sas-web.com | info@sas-web.com | 713.569.6345
- PRE-CONFIGURED LIFT STATION SCADA-READY PUMP CONTROLLER INCLUDES ALL CONTROLLER HARDWARE AND SOFTWARE TO MANAGE UP TO THREE 20 HP/480VAC PUMPS
- CONTROL BASED ON LEVEL TRANSDUCER WITH FLOAT BACKUP
- AUTO SEQUENCING OF PUMPS
- UL 508A CERTIFIED
- INCLUDES REDUNDANT POWER SUPPLIES AND DC UPS
- MINIMAL FIELD WIRING REQUIRED
- PUMP LEADS
- FLOATS
- LEVEL TRANDUCER
- MAIN POWER FEED
- ADVANCE MONITORING OF EACH PUMP INCLUDING
- GROUND CURRENT ALARM & TRIP
- CURRENT PHASE UNBALANCE ALARM & TRIP
- CURRENT PHASE LOSS TRIP
- CURRENT PHASE REVERSAL
- UNDERCURRENT ALARM & TRIP
- OVERCURRENT ALARM & TRIP
- LONG START TRIP
- RAPID CYCLE LOCKOUT
- RAPID RESTART LOCKOUT
- CONTROL STATION INCLUDES 7” TOUCHSCREEN COLOR OPERATOR PANEL
- COMPLETELY CONFIGURABLE FROM HMI – NO PROGRAMMING REQUIRED
- PHYSICAL PILOT DEVICES, RUNTIME METERS AND HMI BEHIND LOCKABLE DOOR
- POWER MONITORING INCLUDING
- PHASE RMS VOLTAGEAVERAGE RMS VOLTAGEMAXIMUM RMS VOLTAGE WITH TIMESTAMPVOLTAGE FLUCTUATION STATUS (DIP & SWELL)PERCENTAGE OF UNBALANCE VOLTAGEMAXIMUM UNBALANCE VOLTAGE WITH TIMESTAMPVOLTAGE FREQUENCYVOLTAGE PHASE SEQUENCEINSTANTANEOUS TOTAL POWER
- MAXIMUM TOTAL REACTIVE POWER WITH TIMESTAMP
- TRUE POWER FACTOR
- MINIMUM TRUE POWER FACTOR WITH TIMESTAMP
- MAXIMUM TRUE POWER FACTOR WITH TIMESTAMP
- TOTAL ACTIVE ENERGY
- TOTAL REACTIVE ENERGY
Contact SAS to learn more.
